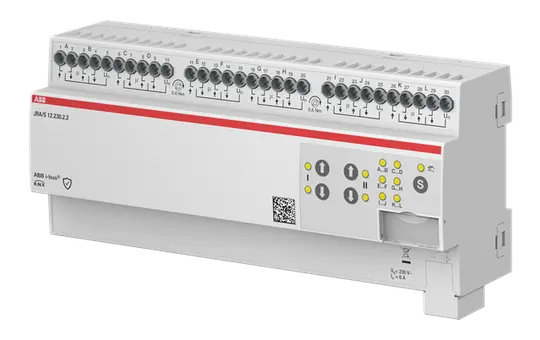

ABB JRA/S12.230.2.2 KNX blind actuator 230 V | 12-fach, manuelle Bedienung

Manufacturer: ABB

Article no.: 20067601

EAN: 4053546110920

Manufacturer item number: 2CDG110287R0011

Manufacturer type: JRA/S12.230.2.2

Weight: 0,656 kg

Available on request

331,12 €

incl. VAT + shipping

pcs

For controlling 12 independent groups of two 230 V AC drives each for positioning blinds, roller shutters, awnings, and other curtains, as well as for controlling doors, windows, and ventilation flaps.
With manual operation directly on the device. No auxiliary power required.
The outputs are electromechanically interlocked.
Functions: Up/Down, slat adjustment/stop, position and scene control, safety functions, automatic sun protection and heating/cooling, status messages.
Product line: KNX

Blinds: Yes
Brand: ABB
Class: Blind actuators
Different bus system: -
Different phases can be connected: Yes
Division units: 12
KNX: Yes
KNX-Secure: Yes
KNX-TP: Yes
Local/manual operation: Yes
Manufacturer item number: 2CDG110287R0011
Manufacturer type: JRA/S12.230.2.2
max. switching power in W: 1,380.00
Mounting type: Series installation
Number of outputs: 12
Rated voltage outputs: 230V AC
Size of connection terminal in mm2: 2.50
Type of transmission: Cable

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Produktdatenblatt

Manufacturer information

ABB
ABB Stotz-Kontakt GmbH
Eppelheimer Straße 82
69123 Heidelberg
DE

info.bje@de.abb.com
new.abb.com/de

Hints

Bei einem nicht steckerfertigen elektrischen Gerät oder Bauteil dürfen Anschluss und Installation nur von einer qualifizierten Elektrofachkraft durchgeführt werden. Bitte beachte auch die Gebrauchsanweisung.

Recycling & disposal

Informationen zum Bereich Recycling & Entsorgung findest du hier: https://www.voltus.de/umweltschutz/.

Description

Specifications

Blinds: Yes
Brand: ABB
Class: Blind actuators
Different bus system: -
Different phases can be connected: Yes
Division units: 12
KNX: Yes
KNX-Secure: Yes
KNX-TP: Yes
Local/manual operation: Yes
Manufacturer item number: 2CDG110287R0011
Manufacturer type: JRA/S12.230.2.2
max. switching power in W: 1,380.00
Mounting type: Series installation
Number of outputs: 12
Rated voltage outputs: 230V AC
Size of connection terminal in mm2: 2.50
Type of transmission: Cable
