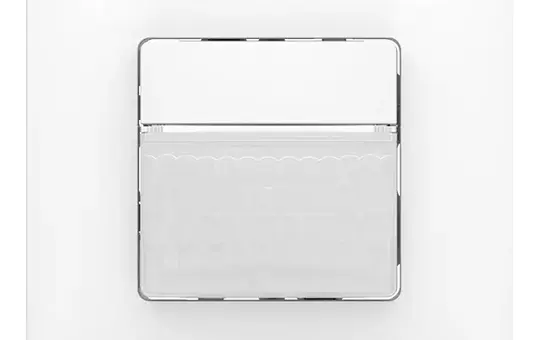

THEBEN LUXORliving BI180 WH Wall Motion Detector standard | white

THEBEN LUXORliving BI180 WH Wall Motion Detector | standard | white

Manufacturer: THEBEN
Article no.: 20046086
EAN: 4003468480472
Manufacturer item number: 4800350
Manufacturer type: LUXORliving BI180 WH
Weight: 0,16 kg
In stock
Delivery: 4-8 business days
Electrical appliance take-back
pcs


This passive infrared motion detector for flush-mounted wall installation is part of the LUXORliving Smart Home system. It comes with a Theben cover frame but can optionally be integrated with other frames in common switch programmes. Its rectangular detection range of 170° covers an area of up to 14x17 metres and can be restricted if necessary. The detector ensures automatic lighting control based on presence and brightness. An integrated temperature sensor and a button expand its functionality. The detection area can be extended through a master/slave connection.

Motion detector wall mounting LUXORlivingBI180WH Other bus systems none, version motion detector, mounting type flush-mounted, material plastic, material quality thermoplastic, surface protection untreated, surface finish matt, colour white, RAL number (similar) 9010, with bus coupling, staircase monitoring, adjustable response brightness, optimal mounting height 1.1 m, max. range to one side 17 m, max. frontal range 17 m, detection field diameter on floor 17 m, horizontal detection angle 0 ... 170°, number of digital inputs 0, number of channels 1, minimum device box depth 40 mm.
Air pressure sensor
No
BAB-Tec
No
Bluetooth
No
Brand
THEBEN
Brightness sensor
No
Casambi
No
Class
Motion detector
Colour
white
Crawl protection
Yes
DALI
No
DALI-2
No
ENOcean
No
free@home
No
Gira One
No
Hager KNXeasy
No
Humidity sensor
No
Installation location
Wall
Integrated constant light control
No
JUNG HOME
No
KNX
No
KNX-RF
No
KNX-Secure
No
KNX-TP
No
LED night light
No
Manufacturer item number
4800350
Manufacturer type
LUXORliving BI180 WH
Manufacturer's colour
white
Material
Plastic
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Protection class (IP)
IP20
Remote controllable
No
Shelly
No
Siemens LOGO!
No
suitable for ceiling mounting
No
suitable for wall mounting
Yes
Temperature sensor
No
Theben LUXORliving
Yes
Thread
No
Type of transmission
Cable
VOC sensor
No
Wi-Fi
No
Wiser Home
No
with Netatmo
No
Zigbee
No
