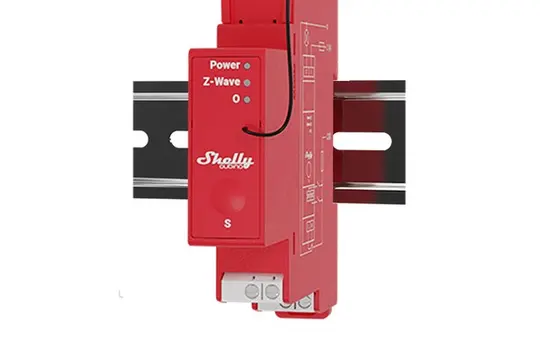

SHELLY W Pro 1PM Z-Wave-Schaltaktor Pro UP

Professional 1-Channel DIN Rail Z-Wave® Smart Switch with Power Measurement?

Suitable for home and building automation with remote control. Mountable on a DIN rail in the fuse box. Enhanced safety features.

• 1 output, 16 A
• Power measurement
• DIN rail mounting
• Extremely low power consumption: < 0.3 W
• Z-Wave frequency band: 868.4 MHz (CEPT countries)
• Latest technology: Z-Wave 800 Series
• Automatic setup with SmartStart
• Security 2 Authenticated for highest security level
• Over-the-Air firmware updates
• Works with Z-Wave certified gateways and over 4,000 Z-Wave devices

*A gateway (Smart Hub) is not included. A gateway (Smart Hub) is required to configure the device.

WHY WAVE PRO 1PM?

The best solution for new residential and commercial buildings

Wave Pro 1PM is a single-phase, 1-channel relay supporting up to 16 A. Equipped with an integrated power meter, Wave Pro 1PM enables measurement of the power consumption of all automated lights or heavier appliances. Various types of actions, scenes, and schedules can be set to adapt your environment to your daily activities or business needs.

Works with any Z-Wave gateway

The Wave Pro Series is designed to be installed on the DIN rail inside the fuse box. After installation, add the device to your Z-Wave network (a Z-Wave gateway is required) and control connected devices with your smartphone or tablet from anywhere. Shelly Qubino devices work with over 4,000 Z-Wave certified devices and gateways.

FEATURES

Z-Wave powered:
Integrate Wave Pro 1PM into your Z-Wave network and control it remotely. It is compatible with all certified Z-Wave gateways.
1 channel, 16 A:
It has a total output power of 16 A.
Power monitoring:
Wave Pro 1PM provides precise monitoring of energy consumption.
Wide voltage support:
Use it to control a variety of AC devices and appliances.
Associations:
Establish direct communication between devices in your local Z-Wave network and create actions without a hub!
Highest security level:
Include the device as Security 2 Authenticated to ensure encrypted communication and the highest security for your Z-Wave network.

Control and monitor devices

Forecast monthly costs and better plan your expenses! Automate electrical devices in the restaurant and track their energy consumption wherever you are. Receive a notification if a device is left on outside restaurant business hours. This allows you to switch it off to avoid energy waste. Furthermore, you can set smart schedules to cut power to all unused electrical devices during the night and switch them back on shortly before their next use.

Avoid unnecessary energy consumption by controlling office equipment power supply

Stop unnecessary energy consumption in the office over the weekend! Computers and monitors left on, plugged-in chargers, illuminated desk lamps, switched-on printers and copiers, etc. – all these devices consume energy when no one is in the office, unnecessarily increasing monthly bills. Avoid this by setting the Wave Pro 1PM to cut power to office equipment over the weekend to save energy. Use smart scheduling functions to restore power before employees arrive at the office.

Preventive management

If an electrical device is damaged, it does not simply stop working. Usually, it increases energy consumption in an attempt to compensate for its operational capacity. Since there are no visible differences in performance, it may take months to identify a problem, wasting energy. The Wave Pro 1PM immediately reports increased energy consumption and saves you additional costs for repairs or device replacement.

Technical specifications

• Power supply: 110-240 V AC, 50/60 Hz
• Power consumption: < 0.3 W
• Power measurement (W): Yes
• Max. switching voltage AC: 240 V
• Max. switching current AC: 16 A
• Max. switching voltage DC: N/A
• Max. switching current DC: N/A
• Overheat protection: Yes
• Overload protection: Yes
• Overvoltage protection: Yes
• Range: Up to 40 m indoors (131 ft.) (depending on local conditions)
• Z-Wave repeater: Yes
• CPU: Z-Wave S800
• Z-Wave frequency bands: 868.4 MHz
• Maximum transmitted RF power in frequency band(s): < 25 mW
• Size (H × W × D): 94 x 19 x 69 ±0.5 mm / 3.7 x 0.75 x 2.71 ±0.02 in
• Weight: 61 g / 2.15 oz.
• Mounting: DIN rail
• Screw terminal max. torque: 0.4 Nm / 3.54 lbin
• Conductor cross-section: 0.5 to 2.5 mm² / 20 to 14 AWG (green terminal) 0.5 to 1.5 mm² / 20 to 16 AWG (white terminals)
• Stripped conductor length: 6 to 7 mm / 0.24 to 0.28 in (green terminal) 5 to 6 mm / 0.20 to 0.24 in (white terminals)
• Housing material: Plastic
• Colour: Red
• Ambient temperature: -20 °C to 40 °C / -5 °F to 105 °F
• Humidity: 30% to 70% RH
• Max. altitude: 2000 m / 6562 ft.
