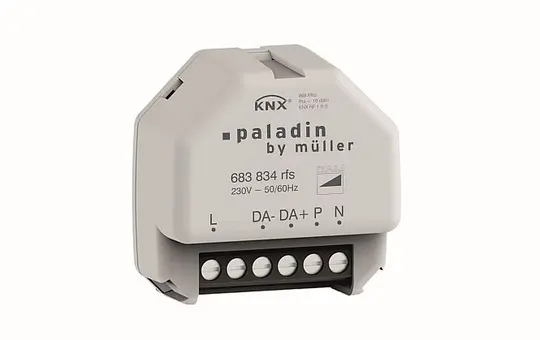

MÜLLER 683834rfs KNX-RF-DALI Gateway UP 1-fold

MÜLLER 683834rfs KNX-RF-DALI Gateway UP | 1-fold

Manufacturer: MÜLLER
Article no.: 20003149
EAN: 4022709239259
Manufacturer item number: 683834rfs
Manufacturer type: 683 834 rfs Paladin
Weight: 0,062 kg
Available on request
Electrical appliance take-back
pcs
The DALI dimmer for building system technology enables dimming of DALI luminaires and can control up to 64 drivers in one group. It offers functions such as minimum brightness setting, broadcast communication, and the storage of up to 5 scenes. With a staircase light timer function and integrated cycle function, it provides versatile application possibilities. Optionally, a memory function for the last set dimming value can be activated. The device supports the use of wired push-buttons and can be configured as a radio repeater. Technical data: Supply voltage: 230 V~, Power consumption: < 3 W, Switching capacity: Up to 64 drivers / ballasts, KNX RF 1.R radio frequency: 868.3 MHz, Signal strength: < 10 dBm, Number of outputs: 1, Dimensions: 46 x 46 x 30 mm, Installation: flush-mounted, Operating temperature: -10 to +45 degrees Celsius, Connection type: screw terminals, Protection rating: IP20. Further technical details can be found in the manufacturer’s datasheet.
BAB-Tec
No
Bluetooth
No
Brand
MÜLLER
Casambi
No
Class
DALI gateway
DALI
Yes
ENOcean
No
free@home
No
Gira One
No
Hager KNXeasy
No
JUNG HOME
No
KNX
Yes
KNX-RF
Yes
KNX-Secure
No
KNX-TP
No
Local/manual operation
No
Manufacturer item number
683834rfs
Manufacturer type
683 834 rfs Paladin
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
flush-mounted
Shelly
No
Siemens LOGO!
No
Theben LUXORliving
No
Thread
No
Type of transmission
radio
Wi-Fi
No
Wiser Home
No
with Netatmo
No
Zigbee
No
