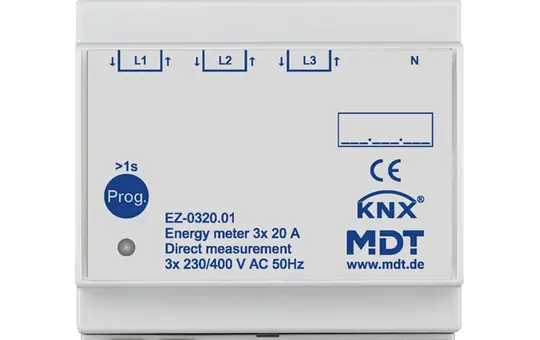

MDT EZ-0320.01 Energy Meter with direct measurement

MDT EZ-0320.01 Energy Meter | with direct measurement

Manufacturer: MDT
Article no.: 20004180
EAN: 4251916130732
Manufacturer item number: EZ-0320.01
Manufacturer type: EZ-0320.01
Weight: 0,181 kg
In stock
Delivery: 2-3 business days
Electrical appliance take-back
pcs
KNX Energy Meter 3-fold 20 A, Direct Measurement, 4TE REG, 230/400 V AC Industrial Version

Direct current measurement up to 20 A. 3-phase bidirectional meter for active energy. Energy meter for single-phase or three-phase circuits. Measurement of active / reactive and apparent power, voltage, current, and power factor cos phi. Separate recording of energy consumption and fed-in energy (kWh). Integrated True RMS current measurement (current, kW). Current measurement range 10 mA to 20 A. Threshold switch (Byte/2Byte/2Byte float). Main and intermediate meter, as well as operating hours counter. 4 mm² / 2x2.5 mm² connection terminals. All L connections separate. Fast application download (long frame support for ETS5). Integrated bus coupler. 3 years product warranty.
BAB-Tec
No
Bluetooth
No
Brand
MDT
Brightness sensor
No
Casambi
No
Class
Energy meter
CO2 sensor
No
Colour
white
DALI
No
Division units
4 TE
ENOcean
No
fits in 55 switch range
No
free@home
No
Gira One
No
Hager KNXeasy
No
Installation location
distribution cabinet
Integrated controller
No
JUNG HOME
No
KNX
Yes
KNX-RF
No
KNX-Secure
No
KNX-TP
Yes
Manufacturer item number
EZ-0320.01
Manufacturer type
EZ-0320.01
Manufacturer's Description
KNX Energy meter 3-channel 20 A, direct measurement, 4 SU MDRC, 230/400 V AC
Material
Plastic
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
Series installation
Shelly
No
Siemens LOGO!
No
suitable for installation in switch ranges
No
Theben LUXORliving
No
Thread
No
Type of transmission
Cable
Wi-Fi
No
Wiser Home
No
with display
No
with Netatmo
No
Zigbee
No

The following links may lead to external websites. Voltus cannot be held responsible for the accuracy or timeliness of external content.

Data Sheet
Manual
Manufacturer information
MDT
MDT technologies GmbH
Papiermühle 1
51766 Engelskirchen
DE

knx@mdt.de
www.mdt.de/
