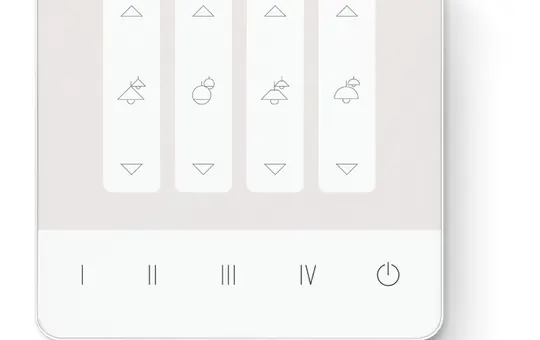

The DALI-2 touch panel is a multifunctional control device (16 freely configurable buttons).


- Configuration in the DALI Cockpit software

- Customisable control panel

- Standard user interfaces available (specific designs on request)

- Dimming, switching, scene recall, macros for controlling colour temperature, dynamic scenes, sequences, and custom command lists

- 4 groups dimmable separately with arrow keys


Ambient temperature: -20 to +75 degrees Celsius

Housing/terminal protection rating: IP40/IP20

Connection wire cross-section: max. 1.5 mm²

Mounting: on installation box

Device type: control device

Multimaster capable: Yes

Configurable via DALI Cockpit: Yes

Dimensions: 87.7 x 87.7 x 16.5 mm

Electrical data:

Supply: from DALI bus

Typical DALI current consumption (at 16.5 V): 2 mA

Type of output: DALI, DALI-2, multimaster, supply
BAB-Tec
No
Bluetooth
No
Brand
LUNATONE
Casambi
No
Class
Touch sensors
CO2 sensor
No
Color temperature control
Yes
Colour
white
Customizable
No
DALI
Yes
DALI-2
Yes
ENOcean
No
fits in 55 switch range
No
free@home
No
Gira One
No
Hager KNXeasy
No
Humidity sensor
No
Infrared sensor
No
Installation location
Wall
Integrated actuator
No
Integrated binary input
No
Integrated room temperature controller
No
JUNG HOME
No
KNX
No
KNX-RF
No
KNX-TP
No
Label field
No
Manufacturer item number
24035410-G02A
Manufacturer type
DALI-2 Touchpanel 03-G02A
Material
Glass
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
flush-mounted
Number of buttons
16
Operating mode
Touch
Protection class (IP)
IP20
Proximity sensor
No
RGB lighting control
Yes
RGB status LED
No
Shelly
No
Siemens LOGO!
No
Status LED, control light
No
suitable for installation in switch ranges
No
Surface
glossy
Temperature sensor
No
Theben LUXORliving
No
Thread
No
Type of transmission
Cable
VOC sensor
No
Wi-Fi
No
Wiser Home
No
with display
No
with Netatmo
No
Zigbee
No
