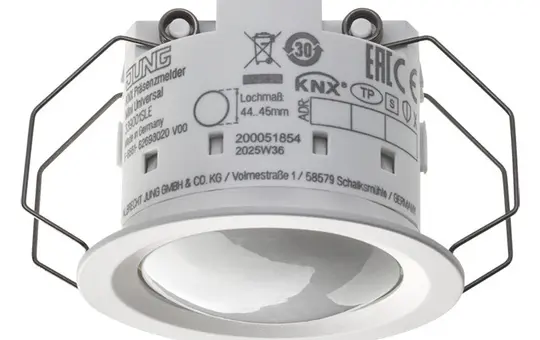

JUNG 339001SLE KNX Mini Presence Detector | Temperature and humidity measurement, Secure | alpine white

KNX Mini Presence Detector with Temperature and Humidity Measurement, Universal, Secure, IP 44, 3.00 m, Alpine White

ETS Product Family: Phys. Sensors

Product Type: Motion Detector

Intended Use

- Operation within the KNX system

- Control of lighting, room thermostats, and other electrical consumers

- Measurement of room temperature

- Measurement of room humidity

- Ceiling mounting indoors and outdoors

- Clamp mounting in suspended ceilings

- Ceiling mounting on fixed ceilings in device boxes according to DIN 49073 with flush-mounted set (Art. No.: PMM-UP-SET-..)

- Surface-mounted ceiling installation on fixed ceilings with surface-mounted set (Art. No.: PMM-AP-SET-..)

Product Features

- Integrated bus coupler

- 3 PIR sensors

- PIR sensors separately evaluable

- Detection field 360°

- Integrated brightness sensor

- Brightness sensor function with 3 threshold values

- Internal temperature sensor

- Integrated humidity sensor

- Use as presence detector, motion detector, or for alarm operation

- Output functions: switching, staircase light function, switching with forced position, value transmitter, scene secondary unit, operating mode specification for room temperature controllers

- Extension of detection area by operating multiple devices as main and secondary units

- Status LED: flashes upon motion detection; depending on programming, either during normal operation or only during walk test mode

- 5 function blocks for motion detection, each with 2 outputs

- Function blocks switchable, e.g. for day/night operation

- Daylight-dependent light control with max. 3 channels, setpoint shift during operation, separate configuration of ramp-up, control, and ramp-down phases

- Light control combinable with presence detector function

- Calculation of dew point temperature

- Orientation light

Scope of Delivery

A design ring in white is included. Other colours can be found under article number 20053542.

Motion Detector – Lighting

- Detection of movements for traffic route safety in buildings

- Switching on: motion detection and brightness threshold undershot

- Switching off: no movement in the detection field and expiry of the hold time

After activation and switching on, motion detection operates independently of brightness.


Presence Detector – Lighting

- Detection of smallest movements, e.g. at a workplace, to recognise the presence of persons

- Switching on: motion detection and brightness threshold undershot

- Switching off: no movement in the detection field and expiry of the hold time, or brightness threshold exceeded


Presence Detector – Monitoring (Surveillance / Alarm / Reporting Operation)

- Brightness-independent detection of movements in the detection field

- Switching on: after detecting a configurable number of movements within the set monitoring period

- Switching off: no movement in the detection field and expiry of the hold time

KNX Secure: Secure

Installation Depth: 35 mm

Version: Alpine white, light lens

Protection Class: Protection class IP44 is guaranteed.
