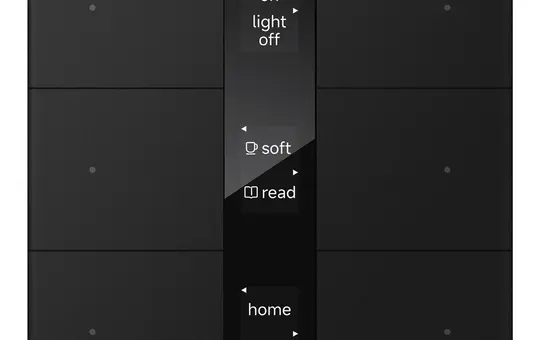

GVS CHPBD-06/36.2.11 KNX Touch Sensor S-Series Triple-glazed display mirror glass | black

GVS CHPBD-06/36.2.11 KNX Touch Sensor S-Series | Triple-glazed display mirror glass | black

Manufacturer: GVS
Article no.: 20085712
EAN: 4262503052962
Manufacturer item number: 503052962
Manufacturer type: CHPBD-06/36.2.11
Weight: 0,2 kg
Available on request
Electrical appliance take-back
pcs
The GVS CHPBD-06/36.2.11 KNX push-button sensor from the S-Series combines classic push-button operation with an integrated display and is suitable for applications where information should be visibly displayed alongside operation. With its black mirror glass surface, it fits into modern switch ranges and offers a clear, well-structured KNX control solution for residential and commercial buildings.

  • KNX push-button sensor with display: 6 actuation points with an additional display level for showing functions, statuses, or symbols.
  • Mirror glass display: Elegant black glass surface with integrated display for a calm and high-quality wall appearance.
  • Wide range of functions: Supports switching, dimming, blinds, scenes, value transmission, as well as colour and colour temperature control within the KNX system.
  • RGB display functions: Status and feedback can be shown directly on the display.

Specifications
  • Bus technology: KNX
  • Control points: 2
  • Mounting type: Flush-mounted
  • Installation location: Wall
  • Display: Mirror glass
  • Colour: black
  • Surface: glossy
  • Dimensions: 86 x 86 x 35.6 mm

The GVS CHPBD-06/36.2.11 is a KNX push-button sensor from the S-Series with an integrated display, especially suitable for applications where operation and visual feedback are to be combined. The buttons can be flexibly parameterised in the ETS and can take on classic functions such as switching, dimming, blind control, or scene calls. In addition, the display enables the presentation of symbols, texts, or status information, giving the user clear feedback on the current status at all times. The operation deliberately remains push-button based and clearly differs from touch panels, which is particularly appreciated in functional installations.

The integrated display is located behind a glass surface and visually blends unobtrusively into modern switch ranges. When switched off, the surface appears closed and calm, while active display clearly shows information. The display can be used for function labelling, status feedback, or displaying scene names. In the ETS, contents and assignment of the displays can be project-specifically defined, so the push-button sensor can be precisely adapted to the respective room and user requirements.

Functionally, the push-button sensor supports typical KNX basic functions such as switching, dimming, blind and shutter control, scene control, and sending values. Furthermore, RGB and colour temperature functions are also possible, facilitating use in modern lighting concepts. The combination of clear push-button logic and display makes the sensor especially suitable for rooms where several functions need to be clearly operated in a limited space.

GVS Germany is a manufacturer of KNX control devices and system components for building automation. The company focuses on clearly structured operating concepts, clean ETS integration, and contemporary design. The S-Series is aimed at users who want to combine classic push-button logic with additional display information while valuing a restrained appearance.
Amazon Alexa
No
Apple HomeKit
No
BAB-Tec
No
Bluetooth
No
Brand
GVS
Casambi
No
Class
Touch sensors
CO2 sensor
No
Color temperature control
Yes
Colour
black
Customizable
No
DALI
No
ENOcean
No
fits in 55 switch range
Yes
free@home
No
Gira One
No
Google Assistant
No
Hager KNXeasy
No
Home Assistant
No
Humidity sensor
No
Infrared sensor
No
Installation location
Wall
Integrated actuator
No
Integrated binary input
No
Integrated room temperature controller
No
JUNG HOME
No
KNX
Yes
KNX-RF
No
KNX-Secure
Yes
KNX-TP
Yes
Label field
No
Manufacturer item number
503052962
Manufacturer type
CHPBD-06/36.2.11
Manufacturer's colour
black
Material
Plastic
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
flush-mounted
Number of actuation points
6
Number of buttons
6
Operating mode
push button
Proximity sensor
Yes
RGB lighting control
Yes
RGB status LED
Yes
Samsung SmartThings
No
Shelly
No
Siemens LOGO!
No
SIP communication
No
Status LED, control light
Yes
suitable for installation in switch ranges
Yes
Surface
glossy
Temperature sensor
Yes
Theben LUXORliving
No
Thread
No
Type of transmission
Cable
VOC sensor
No
Wi-Fi
No
Wiser Home
No
with display
Yes
with Netatmo
No
Zigbee
No
