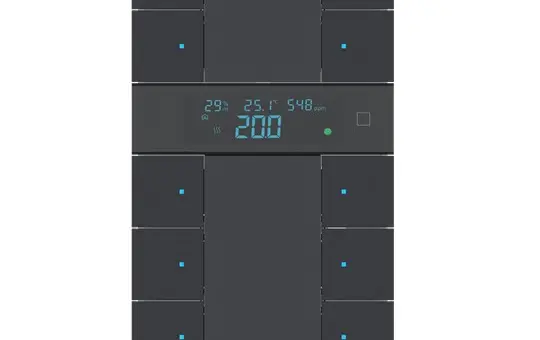

BUSCH-JAEGER SBC-F-10.0.12-83 f@h-RTR tenton |

BUSCH-JAEGER SBC-F-10.0.12-83 f@h-RTR tenton | |

Manufacturer: BUSCH-JAEGER
Article no.: 20102883
EAN: 4011395364321
Manufacturer item number: 2CKA006220A1085
Manufacturer type: SBC-F-10.0.12-83
Weight: 0,17 kg
Available on request
Electrical appliance take-back
pcs

The item is expected to be available from 30 October 2026.



Busch-Tenton® control unit with integrated room temperature controller and up to 10 control functions.

Display showing actual and target temperature, relative humidity, CO2, and operating mode.

With integrated temperature sensor, humidity sensor, and CO2 sensor.

For controlling heating, ventilation, and fan coil actuators.

The room temperature controller can be used as a main or secondary unit.

The room temperature controller can be operated on the device, via app, panel, or secondary unit.

Control functions for switching, dimming, blind control, RTR control, and scenes, among others.

Control elements: touch contacts left/right.

LED to indicate switching status or as orientation light.

With integrated Busch-free@home® bus coupler.

With labelling field.

Power supply via bus terminal.

Design line: Busch-Tenton®

Product range: Busch-free@home®, Busch-free@home® wired
Amazon Alexa
No
Apple HomeKit
No
BAB-Tec
No
Bluetooth
No
Brand
BUSCH-JAEGER
Casambi
No
Class
Room temperature controller
CO2 sensor
Yes
Color temperature control
No
Customizable
No
DALI
No
Different bus system
No
ENOcean
No
fits in 55 switch range
No
free@home
Yes
Gira One
No
Google Assistant
No
Hager KNXeasy
No
Home Assistant
No
Humidity sensor
No
Infrared sensor
No
Installation location
Wall
Integrated actuator
No
Integrated binary input
No
Integrated room temperature controller
No
JUNG HOME
No
KNX
No
KNX-RF
No
KNX-Secure
No
KNX-TP
No
Label field
No
Manufacturer item number
2CKA006220A1085
Manufacturer type
SBC-F-10.0.12-83
Manufacturer's colour
aluminium silver
Material
Plastic
Matter
No
Mbus
No
Modbus
No
Modbus RTU
No
Modbus TCP
No
Mounting type
flush-mounted
Number of actuation points
10
Number of buttons
10
Operating mode
push button
Protection class (IP)
IP20
Proximity sensor
No
RGB lighting control
No
RGB status LED
No
Samsung SmartThings
No
Shelly
No
Siemens LOGO!
No
SIP communication
No
Status LED, control light
No
suitable for installation in switch ranges
No
Surface
matt
Temperature sensor
Yes
Theben LUXORliving
No
Thread
No
Type of transmission
Cable
VOC sensor
No
Wi-Fi
No
Wiser Home
No
with display
Yes
with Netatmo
No
Zigbee
No
