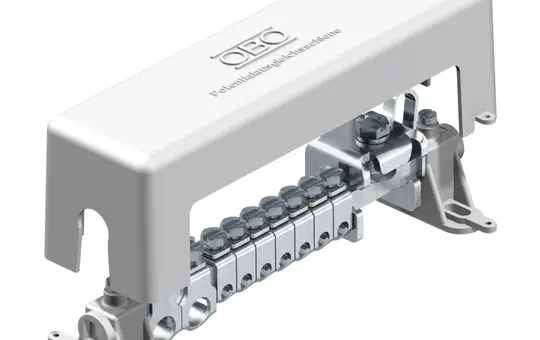

OBO BETTERMANN 5015650 Equipotential bonding bar | VDE tested / for indoor use

Manufacturer: OBO BETTERMANN

Article no.: 20004465

EAN: 4012195378556

Manufacturer item number: 5015650

Manufacturer type: 1801 VDE

Weight: 0,55 kg

In stock

Delivery: 2-3 business days

pcs

Potential equalisation bar for potential equalisation according to DIN VDE 0100-410/-540 as well as lightning protection potential equalisation according to DIN VDE 0185-305

• according to VDE 0618, Part 1
• with 10 x 10 mm brass clamping rail, nickel-plated
• with contact-safe terminal blocks made of steel, electro-galvanised
• cover and rail supports made of polystyrene, grey
• cover sealable / labelable
• lightning current resistant 100 kA (10/350)
• tension bracket with screw locking to prevent self-loosening (e.g. required in industry)

Connection options:
• 7 single- or multi-stranded conductors 2.5-25 mm² or fine-stranded conductors up to 16 mm² (max. Ø 7 mm)
• 2 single- or multi-stranded conductors 25-95 mm² or fine-stranded conductors up to 70 mm² (max. Ø 13.5 mm)
• 1 flat conductor 30 x 3.5 mm

Brand: OBO BETTERMANN
Class: Potential equalization rails
Manufacturer item number: 5015650
Manufacturer type: 1801 VDE
Material: Brass
